AC288 Terminal Block Probe with Retractable Probe Tip
Key features
- Retractable probe tip designed for increased safety, while providing flexibility to reach deep connection points
- Recommended for use with TL224, TL222 or TL221 Test Leads
- 11.5 cm (4.5 in) insulated, flexible shaft
- 1 mm diameter probe tip extends out to 8.4 mm (0.33 in) length
- Retractable probe tip is made with stainless steel
- Safety rated: IEC 61010-031 Ed.1.12008, CAT III 1000 V, CAT IV 600 V
- Operating temperature: -20 °C to 55 °C (-4 °F to 131 °F), 90% RH
- One-year warranty
Close
Fluke 80AK-A Thermocouple Adapter
Features
- For use with thermocouple with mini-male connector
- Suitable for low voltage applications
- Below 30VAC or 60VDC
- 1-year warranty
Close
Fluke 80BK-A Integrated DMM Temperature Probe
Features
- Standard shrouded banana jack
- Convenient one piece construction
Compatible with
- Fluke 179 IMSK Industrial Multimeter Service Kit
- Fluke 179 True RMS Digital Multimeter
- Fluke 287 True RMS Electronics Logging Multimeter
- Fluke 289 True RMS Data Logging Multimeter
- Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter
Close
Fluke 80CJ-M type J Male Mini-Connectors
Features:
- Isothermal screw terminal for J wire
- Suitable for up to 20 gauge thermocouple wire
- Color coded to industry standards (J-black)
- Two per package
- One year warranty
Close
Fluke 80CK-M type K Male Mini-Connectors
- Isothermal screw terminal for K wire
- Suitable for up to 20 gauge thermocouple wire
- Color-coded to industry standards (K-yellow)
- Two male mini-connectors per package
- One-year warranty
Close
Fluke 80i-110s AC/DC Current Clamp
Features
- 10 or 100A AC/DC nominal current range
- Continuous current range
- 0.1 to 10A AC/DC (100mV/A output)
- 1 to 100A AC/DC (10mV/A output)
- ±3% of reading +50mA (100mV/A, 50mA to 10A)
- ±4% of reading +50mA (10mV/A, 50mA to 40A)
- ±12% of reading +50mA (40 to 80A)
- ±15% of reading (80 to 100A)
- Maximum non-destructive current of 140A (2kHz)
- Lowest measurable current of 0.1A
- 100kHz useable frequency
- CAT II 600V & CAT III 300V
- 1-year warranty
Close
Fluke 80K-15 High Voltage Probe
Key features
- Voltage range: 0 to 15kV DC or peak AC, 10kV rms AC
- Basic accuracy: DC +/- 2% 60Hz: +/- 5%
- Division ratio: 1000:1
- Safety standards: IEC 1010-2-031:1993, Type B, 40 kV DC or peak AC, 28kV rms AC, Overvoltage Category I (voltage derived from limited energy transformer).
- Input resistance: 1000 Megohm
- Required meter input resistance: 10 Megohm
Close
Fluke 80K-40 High Voltage Probe
Key features
- A high voltage probe that allows a multimeter to measure up to 40,000V respectively. Intended for low energy applications only
- One year warranty
Close
Fluke 80K-6 KV High Voltage Probe
Key features
- A high voltage probe that allows a multimeter to measure up to 6,000V. Intended for low energy applications only
- One year warranty
Close
Fluke 80PJ-1 Type J Bead Probe
This basic, inexpensive thermocouple offers good accuracy and fast response. (Not suitable for liquid immersion.)
Type-J thermocouple for general purpose applications
Measurement range: -40 to 260°C
One year warranty
Close

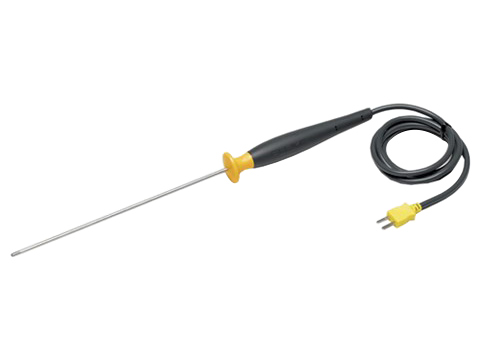

Fluke 80PJ-9 General Purpose Probe
Fluke 80PJ-9 Specifications
Measurement Range F ( C ) -40 to 500F (-40 to 260C)
Accuracy (degree + or -) 1.1C at 0 to 260C
Probe Tip O.D. inches (mm) 0.375 (9.5)
Probe Tip Length inches (mm) 5.5 (140)
Cable Length inches (meters) 40 (1)
Manufacturer’s Warranty 1-year
Close
Fluke 80PJ-EXT Extension Wire Kit
Key features
- Extending and repairing J-type thermocouple wires
- Kit includes 3 meters of thermocouple wire and 1 pair of male/female mini-connectors
- Maximum continuous exposure temperature: 260ºC
- 80PJ-EXT is designed for J-type thermometers
- One year warranty
